RIB-A1-36 Solid Shaft Encoder

  • Rugged Model
  • Rigid Type
  • High Reliability

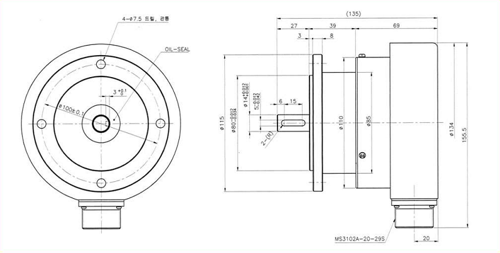

RIB-40-12

Electrical Specifications

Resolution

500, 1024, 1200

Supply Voltage

DC + 5V ~ 24V

Current Consumption

300 mA Max.

Frequency Response

60 kHz Max.

Rise and Falling Time

1 µs



Mechanical Specifications

Maximum Rotational Speed

3000 RPM

Starting Torque

250gf. cm Max. at 25°C

Maximum Shaft Load

Radial

5 kg Max.

Axial

5 kg Max.

Vibration Resistance

10 ~ 55Hz / 1.5mm

Shock Resistance

100G / 11msec

Operating Temperature Range

-10°C ~ +60°C

Storage Temperature Range

-25°C ~ +85°C

Protection

IP64
