• Small Compact Size

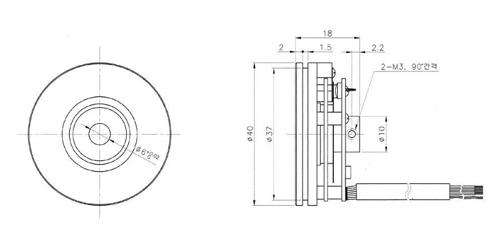

• Height: 18 mm Max.

Electrical Specifications
Resolution	50, 100, 120, 160, 200
Supply Voltage	DC + 5V
Current Consumption	140 mA Max.
Frequency Response	10 kHz Max.
Rise and Falling Time	3 µs

Mechanical Specifications
Maximum Rotational Speed	3000 RPM
Starting Torque	10gf. cm Max. at 25°C
Moment of Inertia	2gf.cm² Max.
Maximum Shaft Load	Radial	1.0 kg Max.
	Axial	0.5 kg Max.
Vibration Resistance	10 ~ 55Hz / 1.5mm
Shock Resistance	50G / 11msec
Operating Temperature Range	-10°C ~ +70°C
Storage Temperature Range	-10°C ~ +85°C

---
