 RIM-80-48
Manual Pulse Encoder
-
Long Life
-
High Reliability
-
Designed for CNC Machine
|
|
Electrical Specifications
|
Resolution
|
100
|
Supply
Voltage
|
DC + 5 / +24V
|
Current
Consumption
|
2 Type
|
2D Type
|
60 mA
|
150 mA
|
Output
Voltage
|
H
|
2.5 V
|
L
|
0.5 V
|
Max.
Frequency Response
|
5 kHz
|
Output
Mode
|
Voltage
Open Collector
|
Line
Driver
|
|

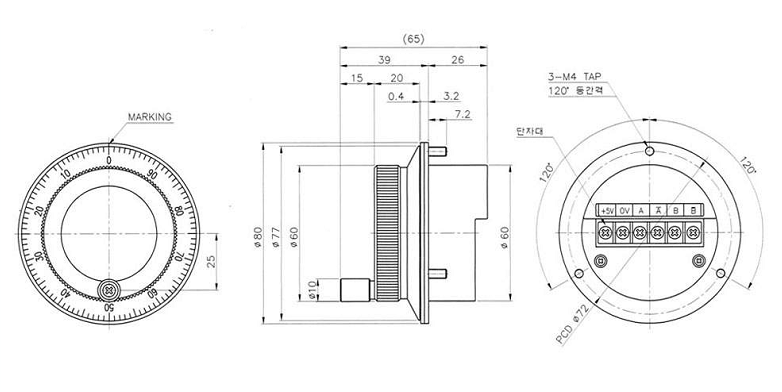

Mechanical
Specifications
|
Maximum
Rotational Speed
|
600 RPM
|
Starting
Torque
|
0.2 ~ 0.6gf. cm
|
Weight
|
200 g
|
Maximum
Shaft Load
|
Radial
|
1 kg Max.
|
Axial
|
2 kg Max.
|
Vibration
Resistance
|
10 ~ 55Hz /
1.5mm
|
Shock
Resistance
|
50G / 11msec
|
Operating
Temperature Range
|
2 Type
|
-10°C ~
+60°C
|
2D Type
|
0°C ~ +60°C
|
Storage
Temperature Range
|
-30°C ~
+80°C
|
|
|
