RIA-38-52
Hollow Shaft Encoder
-
Small Compact Size
-
High resolution
-
High Frequency Response
-
Low Cost
|
|
Electrical Specifications
|
Resolution
|
500, 1000
|
Supply
Voltage
|
Open
Collector
Voltage Output
|
DC + 5 ~
28V
|
Current
Consumption
|
150 mA
Max.
|
Frequency Response
|
200 kHz
Max.
|
Rise and
Falling Time
|
Line
Driver
|
0.2 µs
|
Open
Collector
Voltage Output
|
0.2 µs
|
|

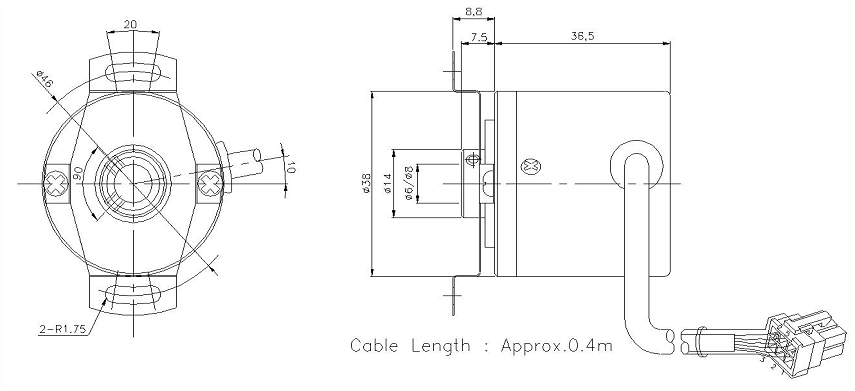

Mechanical
Specifications
|
Maximum
Rotational Speed
|
7000 RPM
|
Starting
Torque
|
100gf. cm
Max. at 25C
|
Moment of
Inertia
|
10gf.cm²
Max.
|
Maximum
Shaft Load
|
Radial
|
2.2 kg Max.
|
Axial
|
1.0 kg Max.
|
Vibration
Resistance
|
10 ~ 55Hz /
1.5mm
|
Shock
Resistance
|
50G / 11msec
|
Operating
Temperature Range
|
-10°C ~
+70°C
|
Storage
Temperature Range
|
-20°C ~
+85°C
|
Protection
|
IP50
|
|
|
