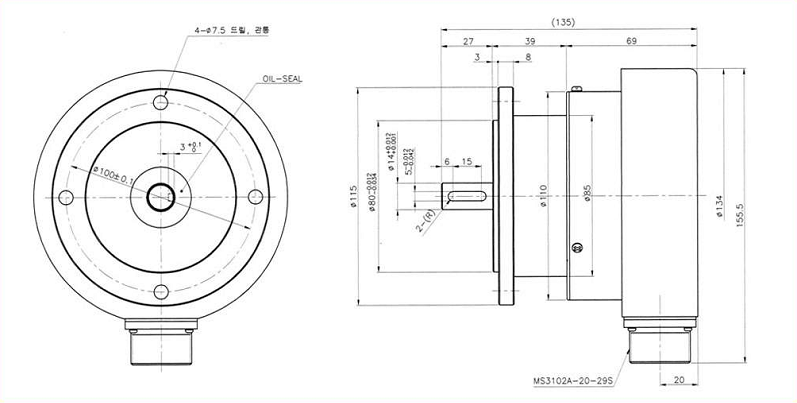

 RIB-A1-36
Solid Shaft Encoder
-
Ultra Rugged Model
-
High Reliability
|
|
Electrical Specifications
|
Resolution
|
500, 1024, 1200
|
Supply
Voltage
|
DC + 5V ~ 24V
|
Current
Consumption
|
300 mA
Max.
|
Frequency Response
|
60 kHz
Max.
|
Rise and
Falling Time
|
1 µs
|
|
Mechanical
Specifications
|
Maximum
Rotational Speed
|
3000 RPM
|
Starting
Torque
|
250gf. cm
Max. at 25°C
|
Maximum
Shaft Load
|
Radial
|
5 kg Max.
|
Axial
|
5 kg Max.
|
Vibration
Resistance
|
10 ~ 55Hz /
1.5mm
|
Shock
Resistance
|
100G / 11msec
|
Operating
Temperature Range
|
-10°C ~
+60°C
|
Storage
Temperature Range
|
-25°C ~
+85°C
|
Protection
|
IP64
|
|
|
