 RIA-40-10
Hollow Shaft Encoder
-
Small Compact Size
-

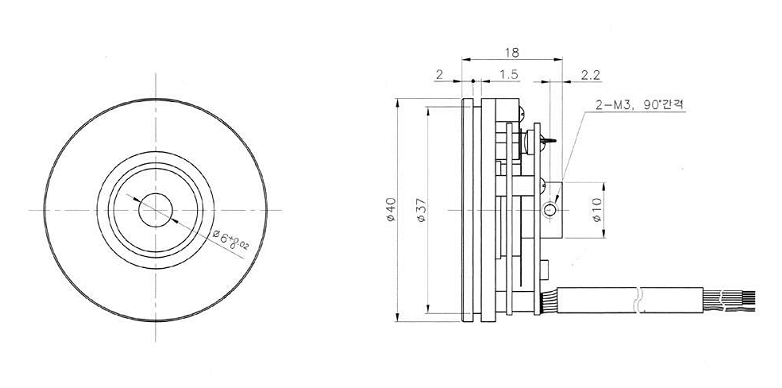

Height: 18 mm Max.
|
|
Electrical Specifications
|
Resolution
|
50, 100, 120, 160, 200
|
Supply
Voltage
|
DC + 5V
|
Current
Consumption
|
140 mA
Max.
|
Frequency Response
|
10 kHz
Max.
|
Rise and
Falling Time
|
3 µs
|
|
Mechanical
Specifications
|
Maximum
Rotational Speed
|
3000 RPM
|
Starting
Torque
|
10gf. cm
Max. at 25°C
|
Moment of
Inertia
|
2gf.cm²
Max.
|
Maximum
Shaft Load
|
Radial
|
1.0 kg Max.
|
Axial
|
0.5 kg Max.
|
Vibration
Resistance
|
10 ~ 55Hz /
1.5mm
|
Shock
Resistance
|
50G / 11msec
|
Operating
Temperature Range
|
-10°C ~
+70°C
|
Storage
Temperature Range
|
-10°C ~
+85°C
|
|
|
