 MBR
Rotary Shaft Encoder

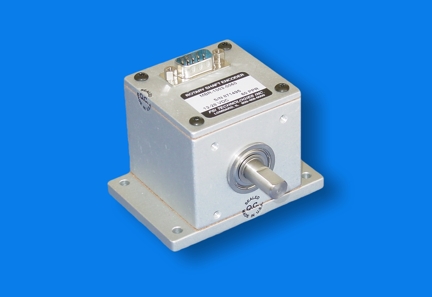

The MBR Series optical shaft
encoder represents a major price - performance breakthrough. It utilizes
IRED light sources and precision mechanical components to provide long
life and durability. It is available with single channel or quadrature
output and can be used to derive RPM, feet per minute and angular
position. When used with simple controls, material can be cut to length
and over and under speed conditions detected. The MBR package with its
easy mounting and standardized connector is designed to meet the demands
of industry and its price, the goals of the OEM. Over four decades of
engineering and manufacturing experience is embodied in every "MBR". FSI
is committed to manufacturing quality products and providing complete
customer satisfaction!
Features
-
Pricing starts at
$98.00 each
-
Single or
Dual Channel Quadrature Output
-
Uses industry standard DB9 connectors Pinout to FSI-DB9TM
standard
-
High Noise
Immunity
-
Short
Circuit Protection
-
Reverse
Polarity Protection
-
Input
Voltage Range 12-28 VDC
-
Single
Ended 3/8" S/S Shaft
-
Infrared
LED and SMD Circuitry
-
Heavy Duty
Chrome Steel Bearings
-
Low Power
Consumption
-
Available in 10 different models
Applications
-
Robotics
-
Speed
Controls
-
Machine
Tools
-
Cut to
Length
-
Position
Control
-
Index Tables

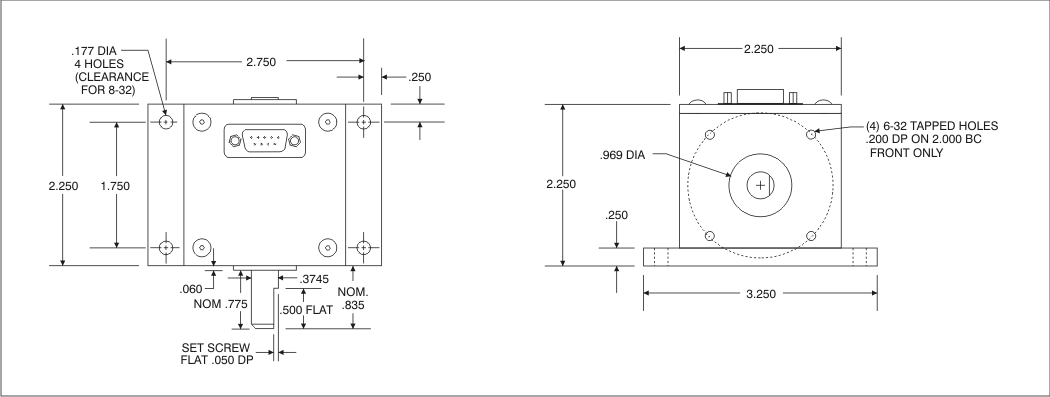

Mechanical
Ordering Information
Download Data Sheet
2980-0098-01 (650K)
|
